Lennox faced a significant challenge: enabling efficient control over a wide array of building systems — HVAC, lighting, security, energy monitoring, and third-party devices — all of which traditionally required siloed interfaces and on-site management. Customers demanded a simpler, more unified way to view and interact with these systems without compromising control depth or reliability.

Facility managers often operate in fast-paced environments, from restaurants to retail, where quick decision-making and remote access are crucial. The legacy systems made it difficult to respond swiftly to system alerts or make real-time adjustments. Technicians also struggled with time-consuming equipment discovery and setup procedures that hindered deployment and troubleshooting.

Without centralized monitoring or smart automation, building performance data — such as zone temperatures, lighting schedules, or equipment health — remained fragmented. Moreover, schedule management, alert diagnostics, and energy use analytics lacked intuitive pathways, leading to reduced operational efficiency.

Lennox responded by designing a user-centric interface for the iCON Building Management Solution that combines high-definition visuals, intuitive navigation, and comprehensive system visibility—all on a 7-inch color touchscreen.

At the core of this transformation is the iCON Local Display, which offers:

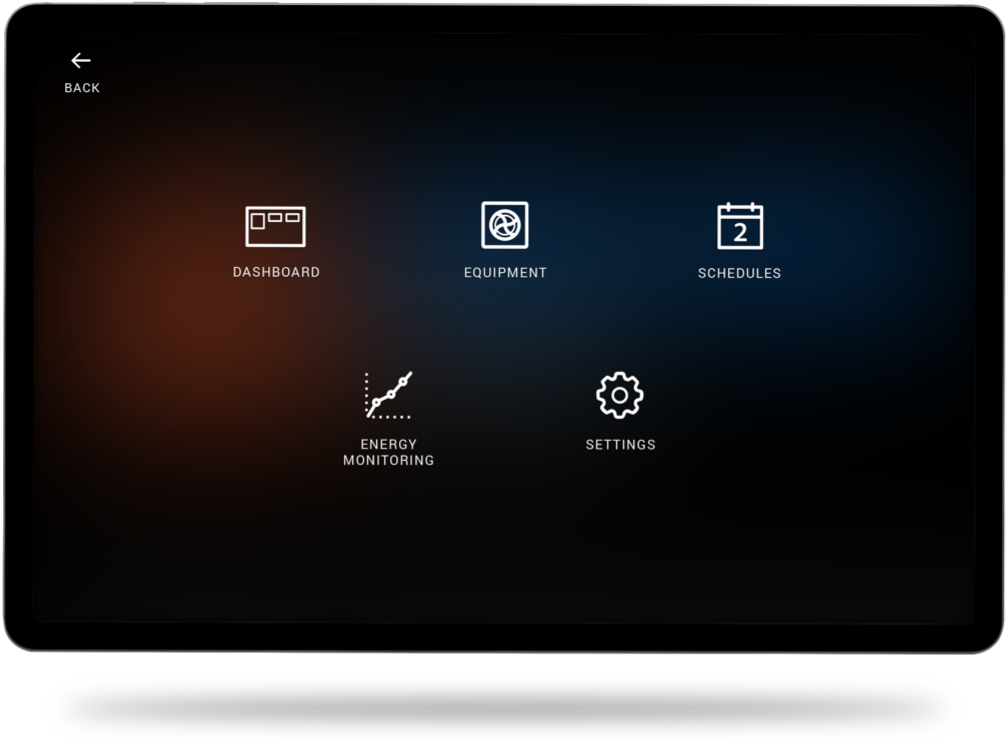

• Graphical dashboards displaying real-time data on HVAC zones, lighting states, energy usage, and active alerts.

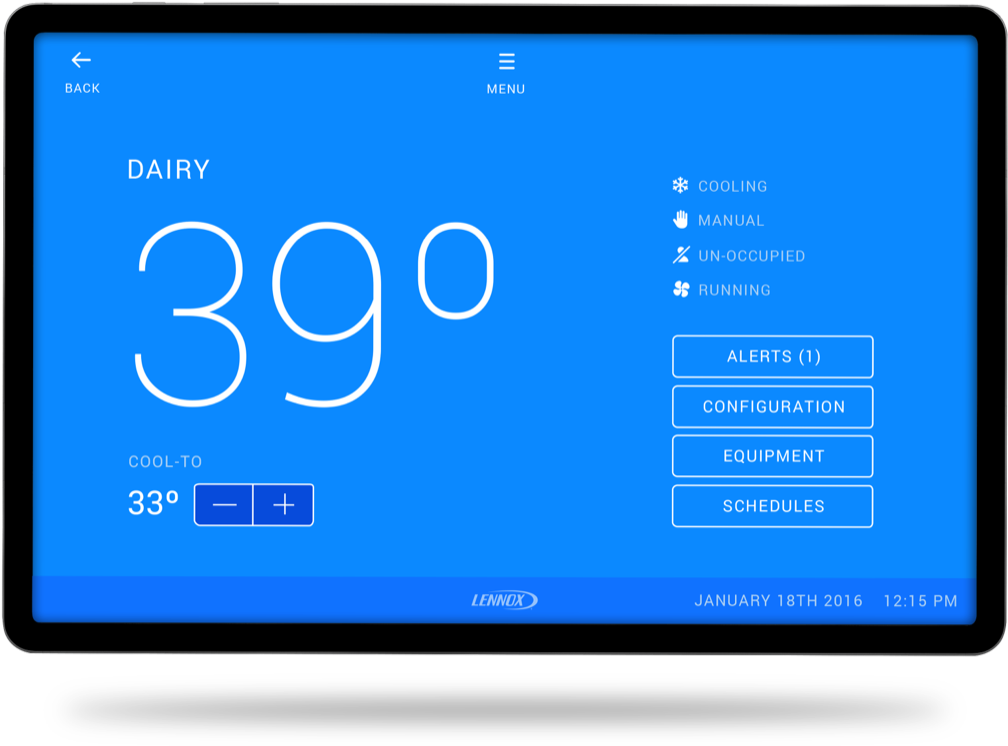

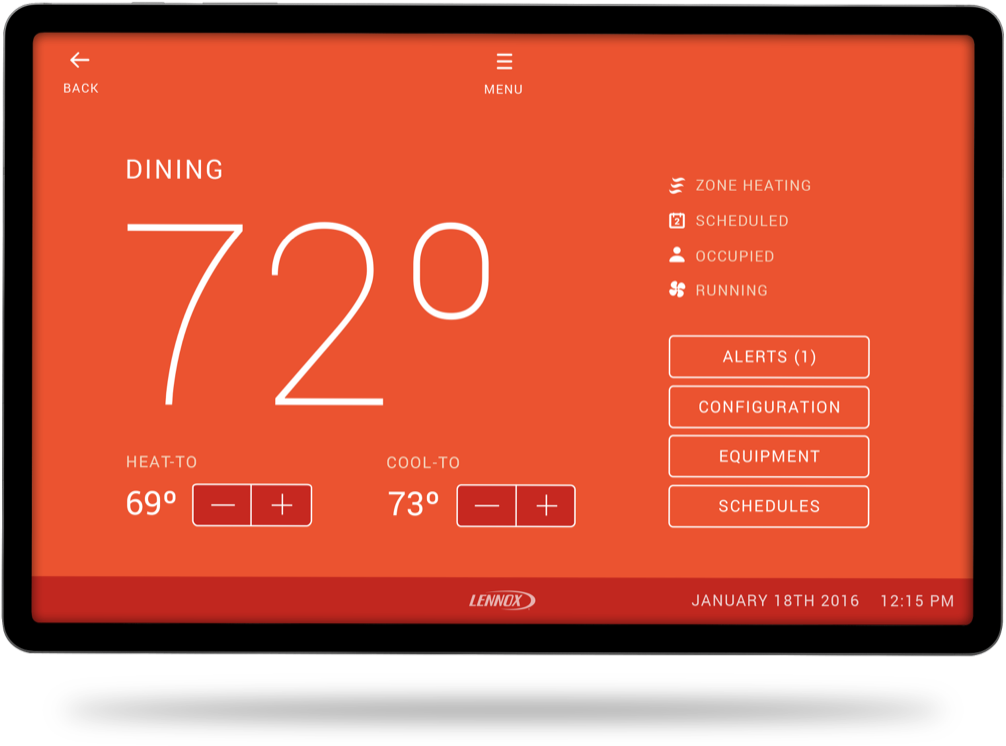

• Intuitive tiles and color-coded status indicators (e.g., red for heating, blue for cooling) that simplify condition monitoring.

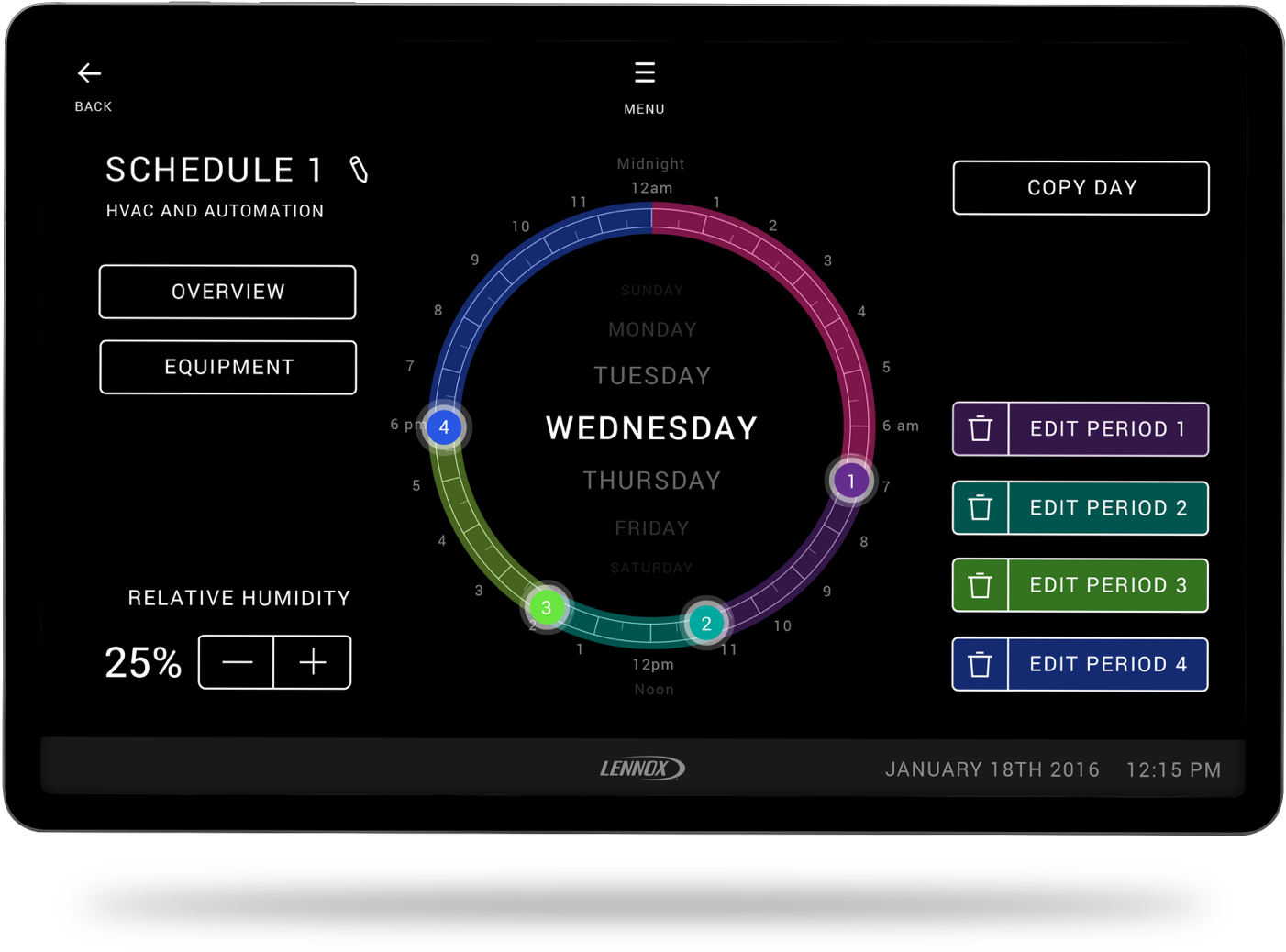

• Flexible automation and scheduling tools supporting up to four customizable periods per day, accessible both locally and remotely.

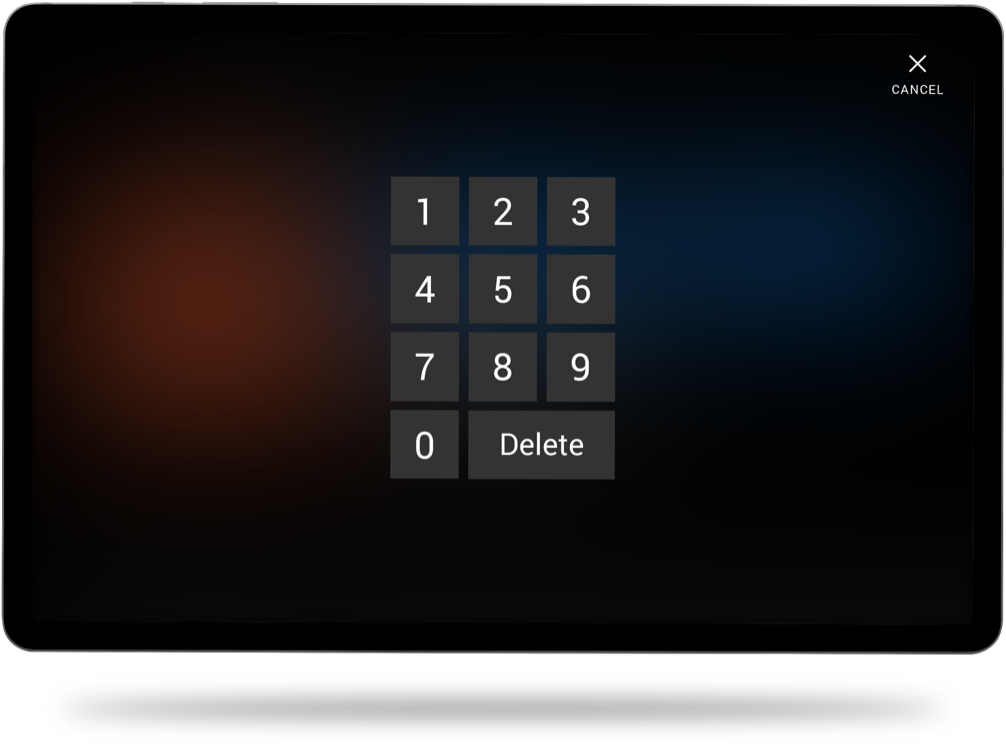

• Pin-protected management layers that ensure secure access for installers and facility managers while preserving ease of use.

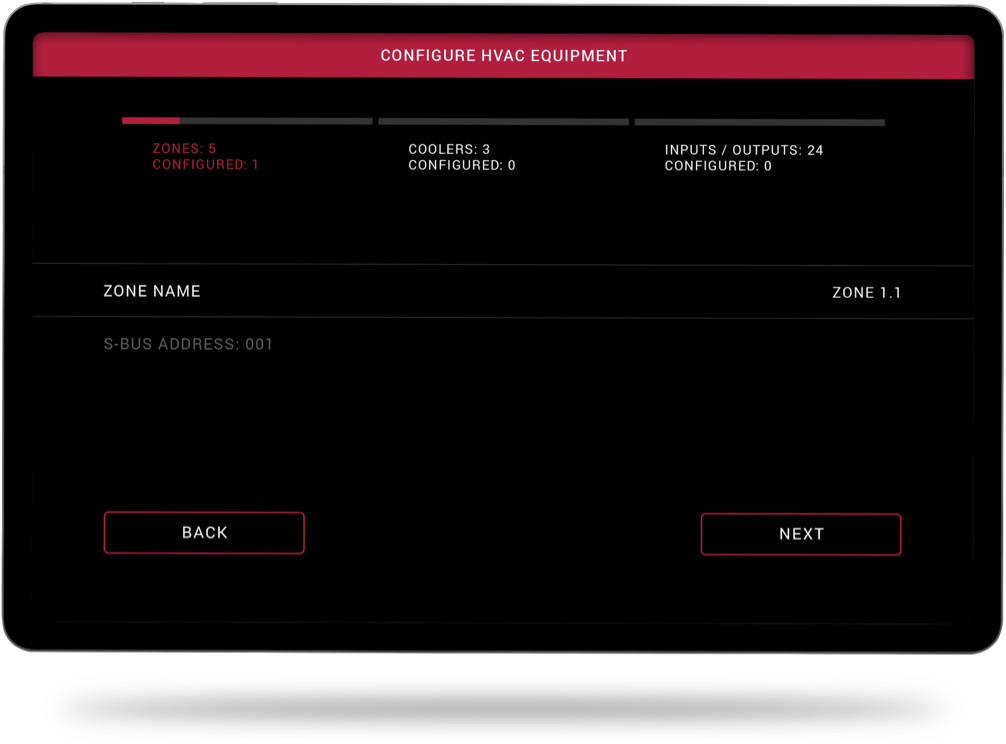

Setup workflows were significantly improved. The Installation Wizard, Equipment Discovery, and Configure Equipment screens streamlined the deployment process, reducing the complexity of assigning HVAC zones, categorizing sensors, and defining inputs and outputs.

By thoughtfully integrating local control with cloud-based access, the iCON UI enables stakeholders to:

• View and manage all building systems from a single device or remotely via the Facilities Portal.

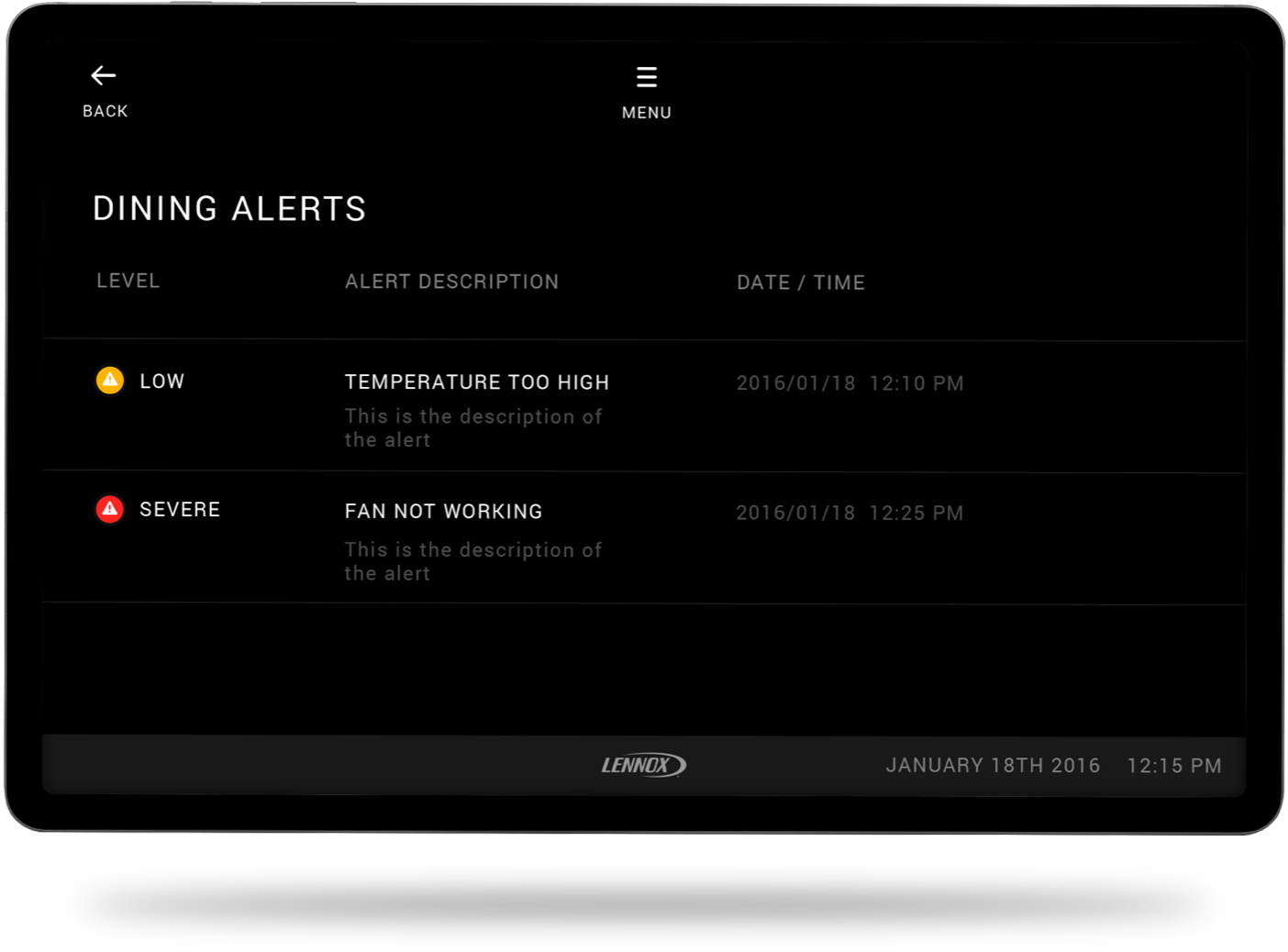

• Respond to alerts with actionable insights and service codes.

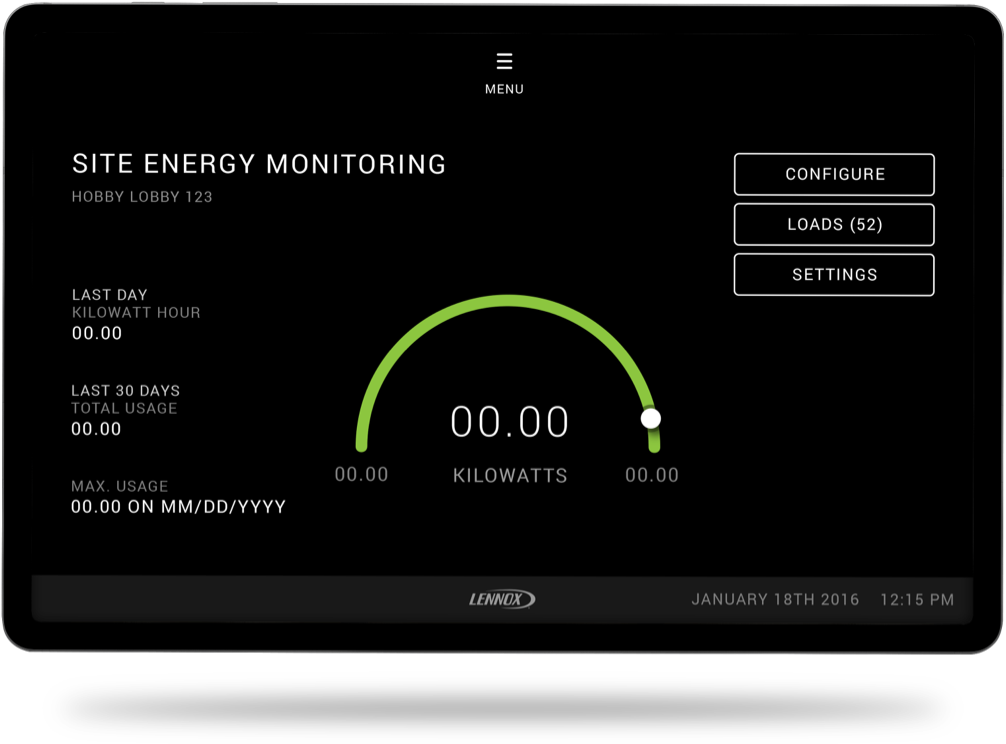

• Assign schedules, adjust parameters, and monitor energy consumption by load type—all through a responsive, intuitive interface.

This design-first approach empowered Lennox customers to reduce energy waste, lower maintenance costs, and gain complete visibility into facility operations. The iCON monitoring system UI stands out as a strong example of usability applied to smart building automation.
